CMY LED 300W Beam Spot Wash
CMY LED 300W Beam Spot Wash

CMY LED 300W Beam Spot Wash

Product Description

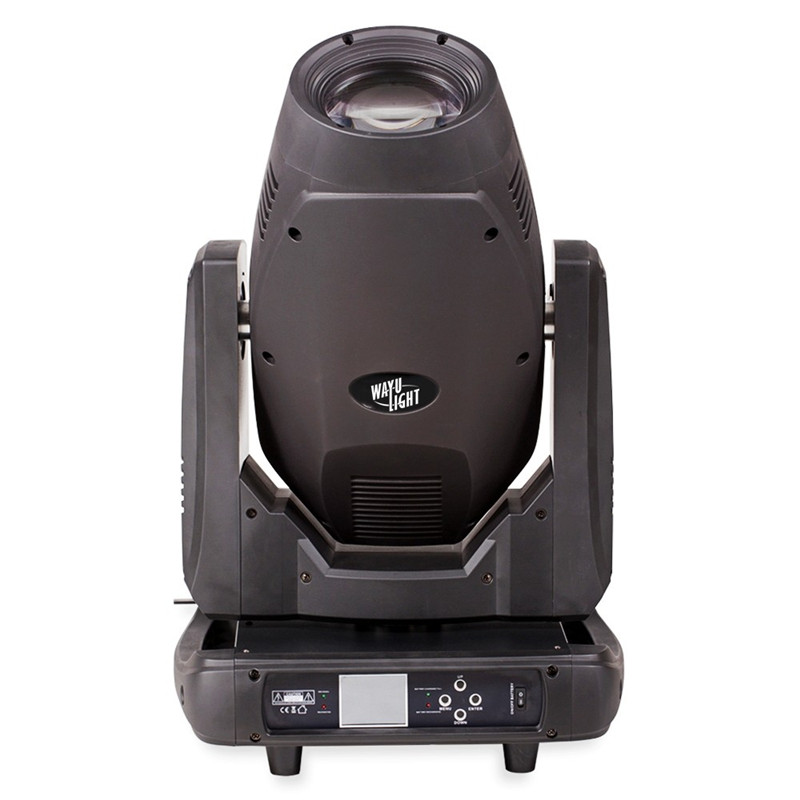

CMY LED 300W 3 IN 1 Beam Spot Wash


Technical specifications:

Power consumption: 370W

Mains voltage: 100 - 240V

Voltage frequency: 50 / 60Hz

Diode type: white? - 8,000K

Number of diodes: 1

Diode power: 350 watts

Zoom range: 9 ° - 40 °

Cyan: 0 - 100%

Magenta: 0 - 100%

Yellow: 0 - 100%

Color wheel: 7 solid dichroic colors + white

Rotating gobo wheel: 7 rotating, interchangeable gobos + open

Static gobo wheel: 9 gobos + open

Iris: motorized controllable via DMX

Frost filter: motorized controllable via DMX

Prism: 3 times

Dimmer: Linear: 0 - 100%

PAN: 540 °

TILT: 270 °

Number of DMX channels: 24/29

DMX standard: DMX 512

Zoom function: motorized controllable via DMX

Focus: motorized controllable via DMX

Display: LCD display with touch function

Cooling: temperature controlled fan

Control interface: 4 buttons + jogwheel

Operating modes: DMX512, automatic, music-controlled, manual, master / slave

AC IN: powerCON

AC OUT: powerCON

DMX IN: XLR - 3-pin + 5-pin

DMX OUT: XLR - 3-pin + 5-pin

Protection class: IP20

Housing: ABS

Size: 432x411x662mm

Net Weight: 24.40 kg
