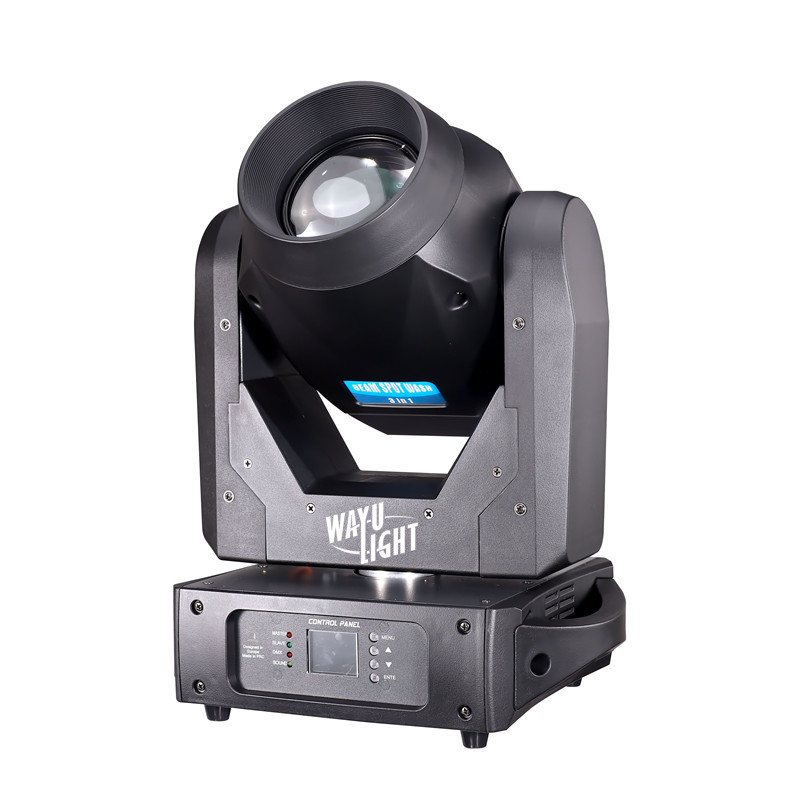

150W 3 in 1 Moving Head
150W 3 in 1 Moving Head

150W 3 in 1 Moving Head

Product Description
roduct Name150W LED Moving head
Light Source150W LED Lamp
Beam Angle2°/4°/6°/8°/10°/11° 3°/6°/9°/12°/15°(Zoom Lens)
Gobo beam angleFixed Disc:10°-17°(Zoom Lens)
Rotation Disc10°-15°(Zoom Lens)
Wash beam angle15°-28°
DMX Channel17/20 channels
DMX Channel Control ModeDMX,Master/Slave,Sound Control
Software upgrade through DMX connection update the software
X axis /Y axis 540 degree /270 degree X axis /Y axis precision: 16 bit precision scanning,magnetic positioning system, can accurately automatically correct the Y axis position X axis position
Color Display: LCD color
DMX signal input & output3 pin & 5 pin DMX socket
Socket outletPowerCon input / output
Protection gradeIP20 linear focusing system
Color disk8 fixed color plus white, two-way rainbow effect
Pattern plate1 fixed pattern plates, 7 patterns with white circle, 1 rotating pattern plates, 6 patterns and white circles
 Pattern outer diameter21mm,pattern inner diameter: 17mm 1 bi-directional rotating 6 prism Wheel: 1 color wheel with 8 colors+open
  Inner box size380x322x470mm

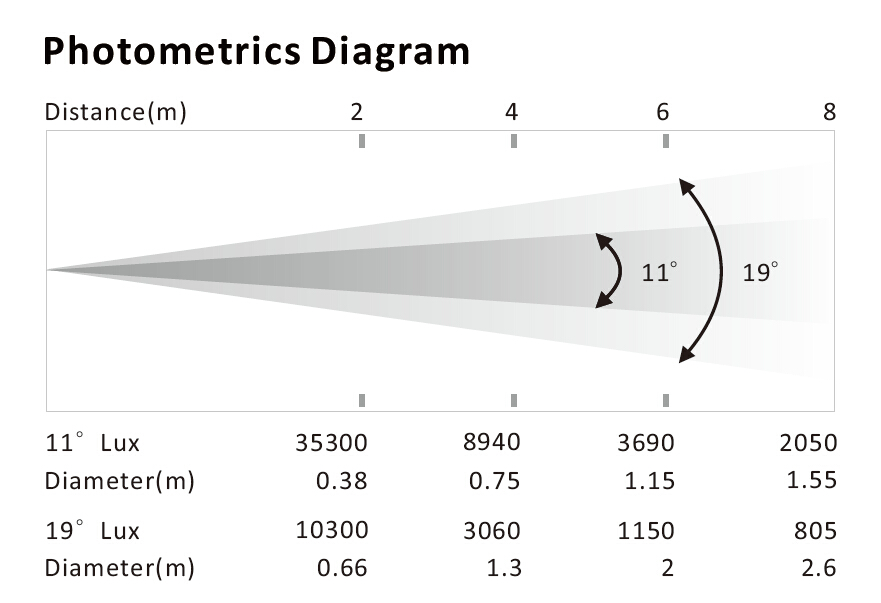

150BSW Photometric diagram.jpg
